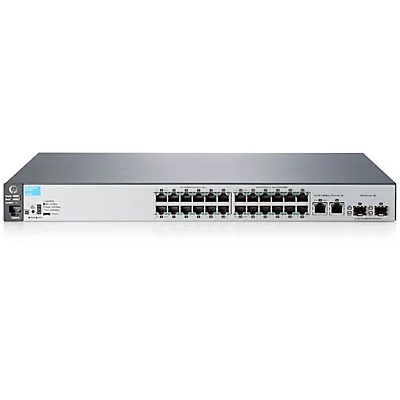

Aruba 2530-24 Switch

Aruba 2530-24 Switch (J9782A)

I/O ports and slots:

• 24 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full
• 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX:                                              half or full; 1000BASE-T: full only
• 2 fixed Gigabit Ethernet SFP ports
• 1 dual-personality (RJ-45 or USB micro-B) serial console port

Dimensions: 17.40 (w) x 9.70 (d) x 1.75 (h) in (44.2 x 24.64 x 4.45 cm) (1U height)

Memory and processor: ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated

Mounting and enclosure: Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); Horizontal surface mounting; Wall mounting

Performance:

• 100 Mb Latency < 1.7 µs (LIFO 64-byte packets);
• 1000 Mb Latency < 1.1 µs (LIFO 64-byte packets);
• Throughput: up to 9.5 Mpps (64-byte packets);
• Switching capacity: 12.8 Gbps;
• MAC address table size: 16000 entries;

Operating temperature: 0°C to 45°C

Гаранција: 12 месеци (Limited Lifetime Warranty)
